  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc
  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc

  • It can be used for detection and dredging operations in high-risk environments such as 3000~5000mm diameter pipelines, urban deep tunnel pipelines, box culverts, sewage treatment plants, etc

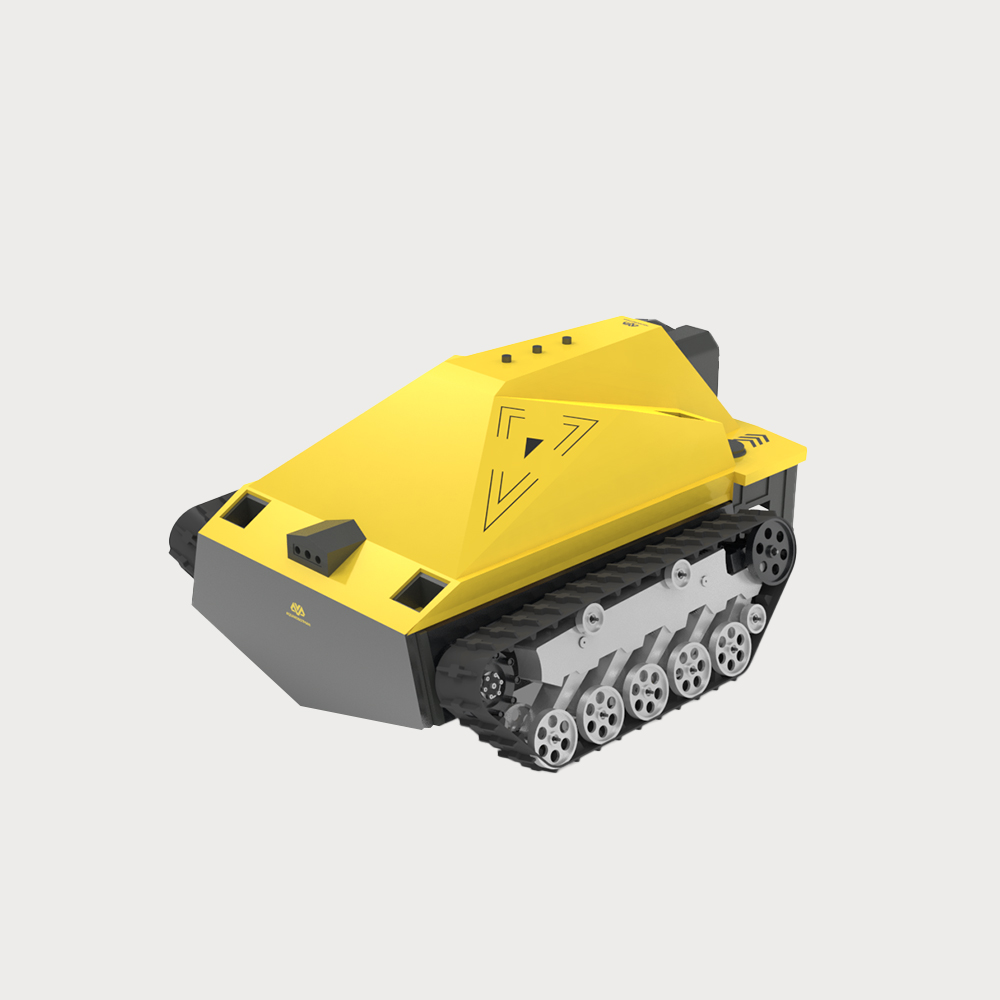

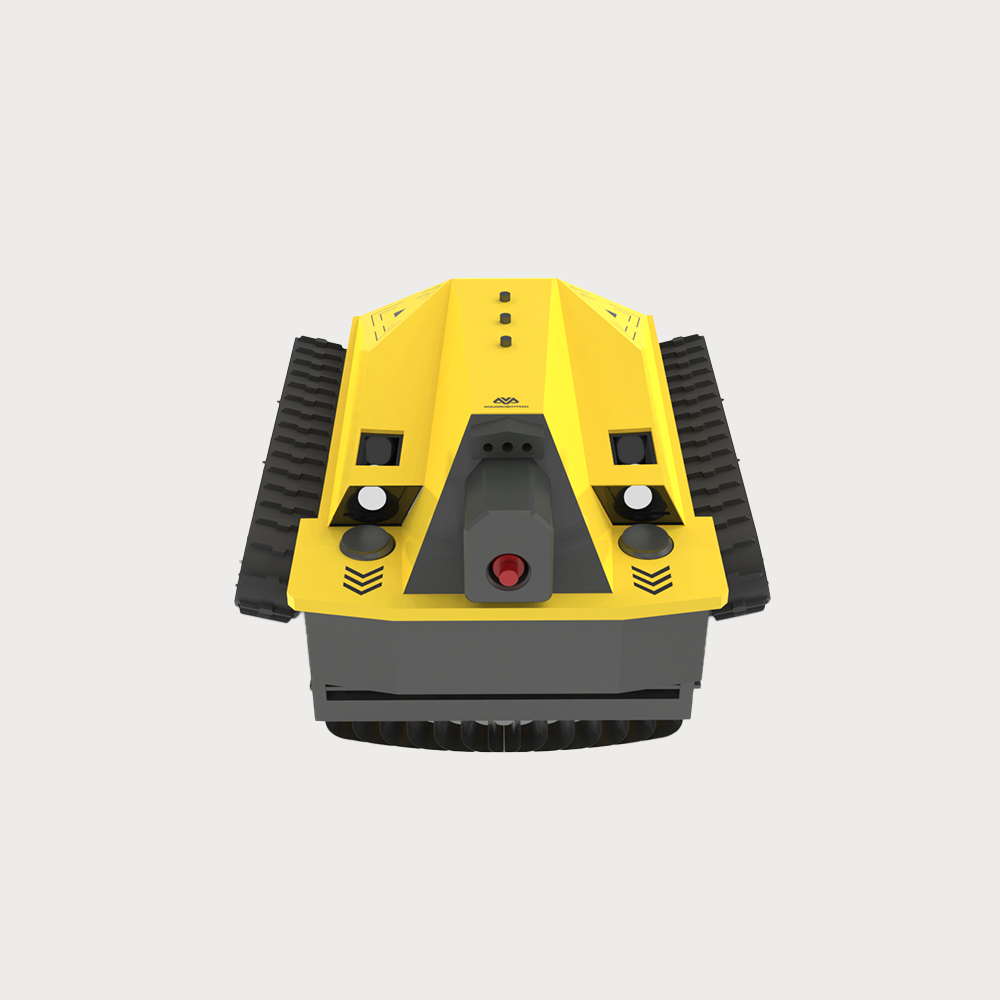

  • The robot is equipped with two high-definition video cameras, which can monitor the working environment and dredging situation in real time; At the same time, it is equipped with a high-precision sonar system, which is used to scan the working environment and clearly understand the situation before and after the operation of pipelines, box culverts and other places. The corresponding head can be replaced according to the different types of silt, which is convenient for efficient dredging operation. The equipment adopts a central control box or mobile device for real-time control, which is convenient for operation and can fully grasp the working status of the robot and prevent accidents. The use of this equipment can greatly improve the work efficiency of the operator and the economic benefits of the work unit, and eliminate personal injury accidents in high-risk working environments.
  • $ Inquiry
  • 0 in Stock NowJR-QSX1258

  • QUANTITY

  • Contact Online

Weight

245kg

Volume

1480mm × 1500mm × 760mm

Angle of climb

20°

Material

316 stainless steel, waterproof and corrosion resistant design

Operating temperature

-10°C~40°C

Operating depth

Up to 50m deep

Applicable pipe diameter

Suitable for 3000~5000mm diameter pipe

Force of traction

Two 750W waterproof motors with a maximum traction of 150kgf

Force of thrust

The thrust of the four vortexes reaches 50kgf

Communication

Communication cable tensile 500kgf, can achieve safe and reliable communication

Hd camera

Ultra HD 4K detection camera for real-time detection

Meter counter

The centimeter-level high precision meter device can accurately locate the position of the robot in the pipeline

Sonar

360-degree ring scan sonar can accurately measure the thickness of underwater silt and show the effect of dredging in real time

Carrier module

Sonar, camera, spray module, Hank suction module, crushing module, Hank module

Hd camera

Equipped with 2 high-definition cameras, respectively in the front and rear, you can monitor the working environment and silt in real time; Equipped with 2 high power fill light.

Sonad Turktyon

Equep de Weshai-Pressión Sona Cy Stem, Iter Meal, Scant, Woking, Envi Longment, Inrial Timo Inte, Dark, Dark, En Vi Longment, Andle, Leon, Destant, Condé, Tions, Ben Pipelinne, Box, Ander, Calverts, Bevery Anderaft Te Opellatian.

Pressure resistant and waterproof

The car body adopts a professional waterproof motor, and all components are strictly waterproof treatment, which can work normally under water pressure of up to 50 meters.

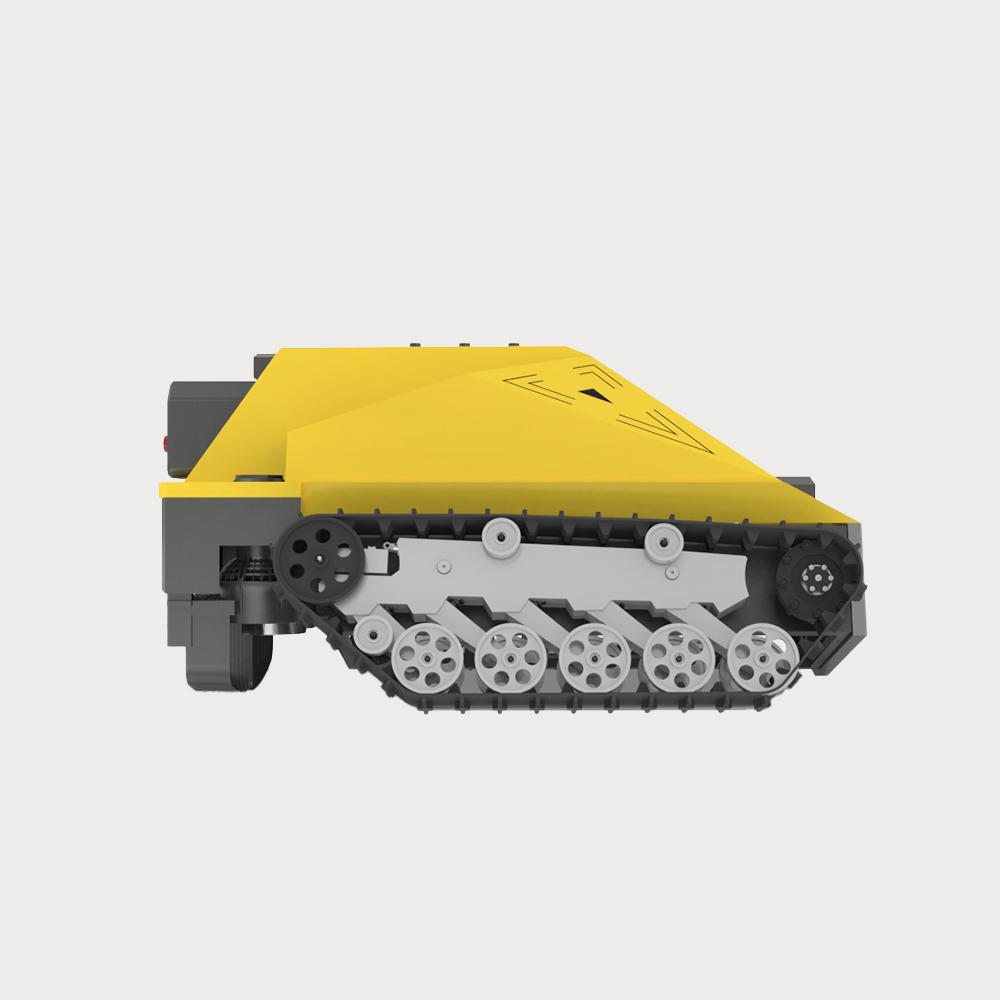

Trak Chasis

Tyril Delif Trak de Chasis En, Surestatt, Teka Meal, Kopweth Ah, Wariti Ben Grande Conditions, De Vent St. Bilian de Essy Control.
