  • Small portable agricultural drone pesticide spraying, pesticide spraying, fertilization, sowing and planting protection machine 16L UAV JR-JAS81
  • Small portable agricultural drone pesticide spraying, pesticide spraying, fertilization, sowing and planting protection machine 16L UAV JR-JAS81
  • Small portable agricultural drone pesticide spraying, pesticide spraying, fertilization, sowing and planting protection machine 16L UAV JR-JAS81
  • Small portable agricultural drone pesticide spraying, pesticide spraying, fertilization, sowing and planting protection machine 16L UAV JR-JAS81

  • Small portable agricultural drone pesticide spraying, pesticide spraying, fertilization, sowing and planting protection machine 16L UAV JR-JAS81

  • JR81 series agricultural plant protection machine lighter, more flexible, single person can complete the operation Powerful integrated injection fuselage, internal multi-chain skeleton structure, double structural strength Waterproof and dustproof body No fear of dust and pesticides, support the whole machine washing, the whole machine body cover up and down sealing, corrosion resistance, scratch resistance, effective waterproof and dustproof effect
  • $ 7000 - $8910
  • 0 in Stock NowJR-JAS81

  • Group

    UAV+AC+CAM

    UAV+AC+CAM+Chg+CELL

    UAV+AC+CAM+Chg+CELL+RADAR

  • QUANTITY

  • Contact Online

developed dimension:1140*1300*575mm

folded size:1010*610*575mm

diagonal wheelbase:1480mm

working voltage:58.8V(14S)

Weight:16kg

load:10L

flight speed:3-8m/s m/s

spray width:3-5m/s m/s

Maximum takeoff weight:38kg

sprinkler system:pressure nozzle/centrifugal nozzle

pump maximum pressure:0.8mpa

Spray Flow:4-8/min

flight time:No-load(20-25min) full load(7-10min)

Operation efficiency:8-10(min)Acres/mu/Min min

Battery:14S18000mah

charging time:15-30min/min

charging cycle:300-500times

daily efficiency:300-600Acres acres

Material:carbon fiber/nylon fiber/aluminum alloy

packing1060*660*625mm

Operating voltage range:Master: 4.8V5.3V

power supply module: input 11.1V50V (recommended 3S-12SLipo); maximum output current 3A @ 5V

GPS module: 5V

LED lamp module: 5V

battery voltage: 3-12s

power consumption: <5W

working environment temperature:-10 ℃60 ℃

Storage Ambient Temperature:-25 ℃60 ℃

Weight:master controller: 87g

GPS/magnetic compass module: 45g

LED lamp module: 14g

PMU:41g

Size:main controller: 72.6*44.6*22.8mm

GPS/magnetic compass module: 62mm (diameter)

LED lamp module: 24*24*8mm

PMU:53.4*34.4*14.5mm

flight characteristics:

hovering accuracy: horizontal direction: ± 1.5m vertical direction: ± 0.5m

maximum tilt angle: 30 °

maximum yaw speed: 150 °/s

Maximum vertical speed: 6 m/s

Maximum wind resistance: continued wind: level 4 gust: level 5

You May Be Intersted
Agricultural spraying, spraying, sowing and fertilization, with a load of 10 kg, plant protection drones UAV JR-JAS75

Agricultural spraying, spraying, sowing and fertilization, with a load of 10 kg, plant protection drones UAV

JR75 Series Quad-copter 10-22KG Agricultural UAV FPV Camera LED Lighting No fear of dust and pesticides, full body can be water washed, whole body sealing,corrosion resistance, scratch resistance, waterproof and dustproof Integrated injection molding body,multi-chain skeleton structure, double strength, double durability, built-in power distributor Folding parts using injection molding process, the arm composite plastic components, more tight, more durable High strength carbon fiber material, composite plastic component,threaded connection, more stable, more solid

$6200 - $7800
The thruster is equipped with a 600W power motor, which can generate 10kg of thrust, which is enough to drive an adult to swim underwater

A portable underwater rescue thruster that can be used in surface search and rescue as well as under

Help rescuers reach the rescue waters as quickly as possible. The MagicJet is designed with a large-capacity lithium battery that can last up to 100 minutes, and the battery can be removed and replaced underwater, providing an ultra-long battery life. The unique micro-buoyancy design makes it not increase the additional burden of rescuers in the water, ensuring that the underwater rescue work is unhindered. The device adopts responsive design (such as power indicator light reminder, press start, etc.), which greatly saves the user's learning cost and enables the user to use it quickly and proficiently. The device weighs only 3.6kg and is detachable for easy portability. The equipment can be fixed on the search and rescue vehicle, which does not increase the burden on the vehicle and gives the vehicle strong power. When the power of a single device is insufficient, it can be spliced and used together to provide greater thrust, ensure the smooth progress of search and rescue work, and save search and rescue time.

Inquiry
Auto-orientation, auto-height setting Automatic depth fix, attitude hold Optional underwater hovering, position holding path tracking underwater drone

Resolution: 4K 25x zoom Sensitivity: 0.01Lux Field of view: 50° underwater drone

The Haitun Series ROV from DEEPINFAR is a light work-class ROV with exceptional capabilities, featuring strong maneuverability and payload capacity, capable of diving up to a depth of 1000 meters. Equipped with multiple high-performance electric thrusters, it achieves high-speed underwater movement and has a certain level of current resistance. The Haitun Series also offers a wide variety of options, allowing for quick customization with sensors and tools to suit different application scenarios.

Inquiry
VTOL Heavy load UAV Overlooking the whole picture and gaining insights into the details

VTOL Heavy load UAV hybrid power system

JR1204 adopts a hybrid power system, is a vertical takeoff and landing fixed-wing UAV platform with universal mounting capability, can carry different payloads to complete normal inspection, 2D / 3D aerial survey, special equipment transport and other tasks, the platform has full autonomous flight capability.

$246645
Anti-Spark Filter Enhance user experience and streamline maintenance UAV

Lightweight and Durable UAV

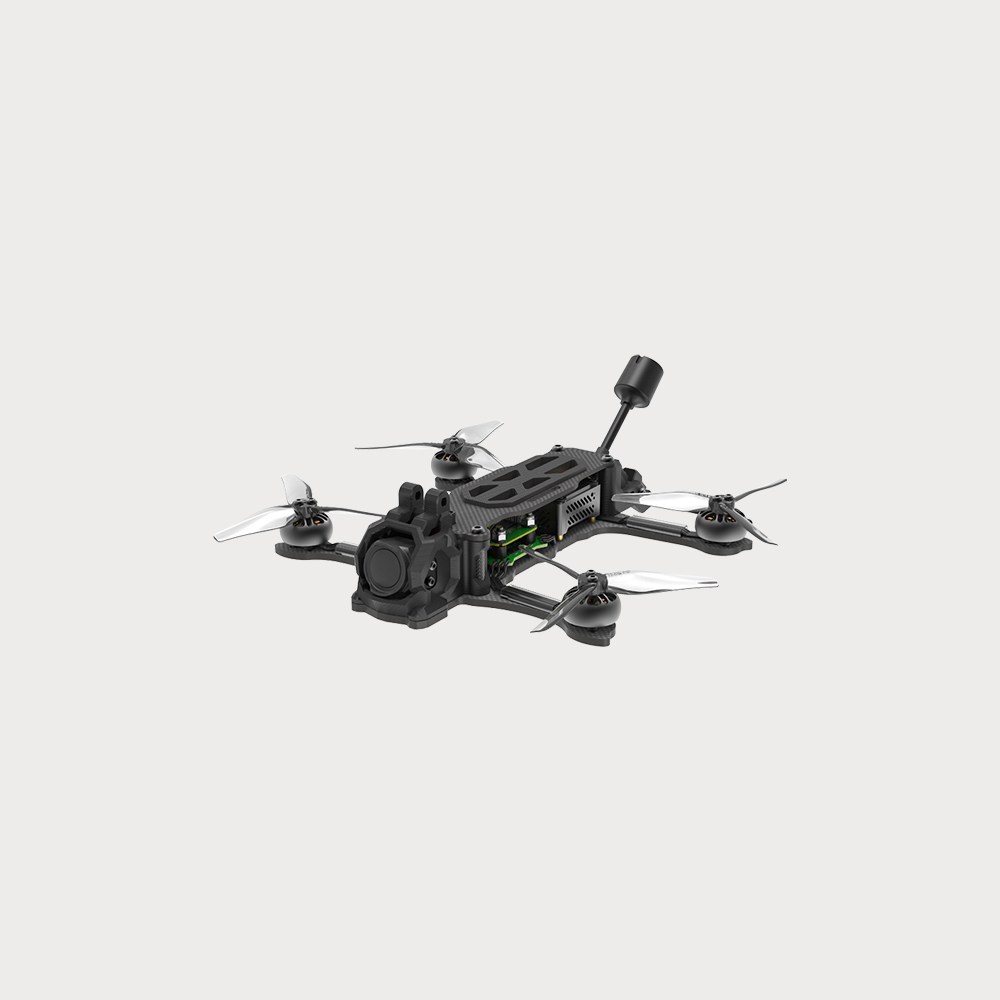

Redefine the performance and value of the 5-inch standard flower aircraft model. It is equipped with DJI's O3 Digital HD system, whose unique design ensures a propeller-free field of view for direct video use from the O3 Skyunit. Paired with the ATF435 flight controller and BLITZ E55S 55A ESC, it delivers unmatched performance and reliability. The carbon fiber frame comes with a CNC aluminum alloy camera mount for lightweight and durable, while the included GoPro mount provides versatility to capture epic freeflight. Take your flying experience to new heights with the Nazgul DC5 ECO.
