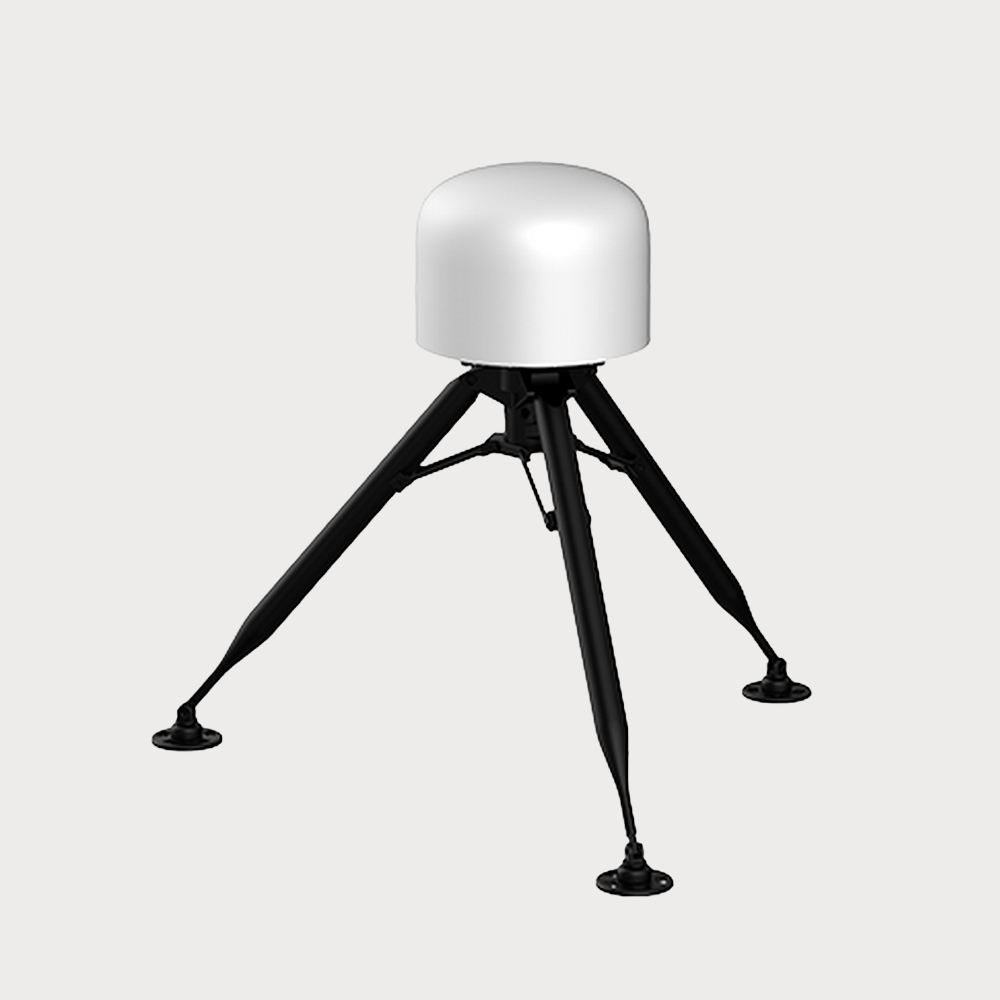

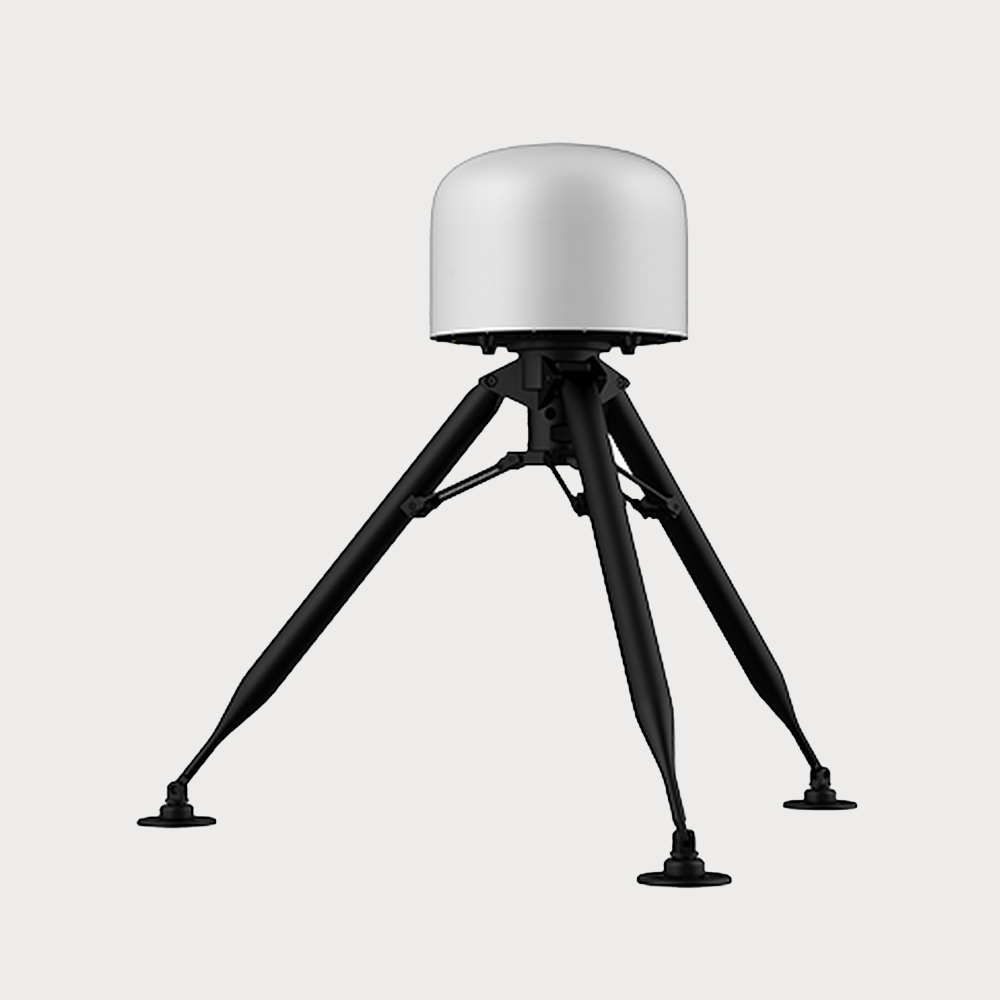

  • The full-frequency detection equipment is mainly composed of an array antenna, a radio frequency circuit, a multi-channel synchronous receiver, a GNSS positioning module, etc. The equipment is based on AOA+TDOA composite positioning technology, and has functions such as detection and early warning, model identification, positioning tracking and trajectory playback of drone within and outside the range of multiple stations. Any number of detection devices can be freely expanded according to the scope of the monitoring area.
  • $ 3340
  • 0 in Stock NowJR-HN30

  • GROUP

    30

  • QUANTITY

  • Contact Online

All-weather, All-round

It is suitable for complex electromagnetic and climatic environments, and is not affected by lightning, fog and haze weather, and night vision

Composite Passive Positioning Technology

It can be used for single-station AOA direction finding and ranging, or multi-point deployment and networking to achieve precise TDOA positioning

High Design Maturity

All-in-one design, no other functional modules, easy and fast deployment

Strong Environmental Learning Ability

It can quickly build a library for the non-signal feature library drone on site, update and expand the existing feature library

Full-band Detection

It can accurately identify the vast majority of consumer drones, WIFI toy machines and other hundreds of models

Detection Signal Type

Drone digital signal, Drone remote control signal, wifi system Drone signal

Detection Frequency Band

Drone image transmission/Data transmission/Remote control frequency band

Single Station Detection Radius

≥5km（Open environment, Droen transmit power 0.1W）

Detection Range

Horizontal 360° omnidirectional

Communication Interface

Ethernet

Power Supply

AC220V±10%，50Hz
