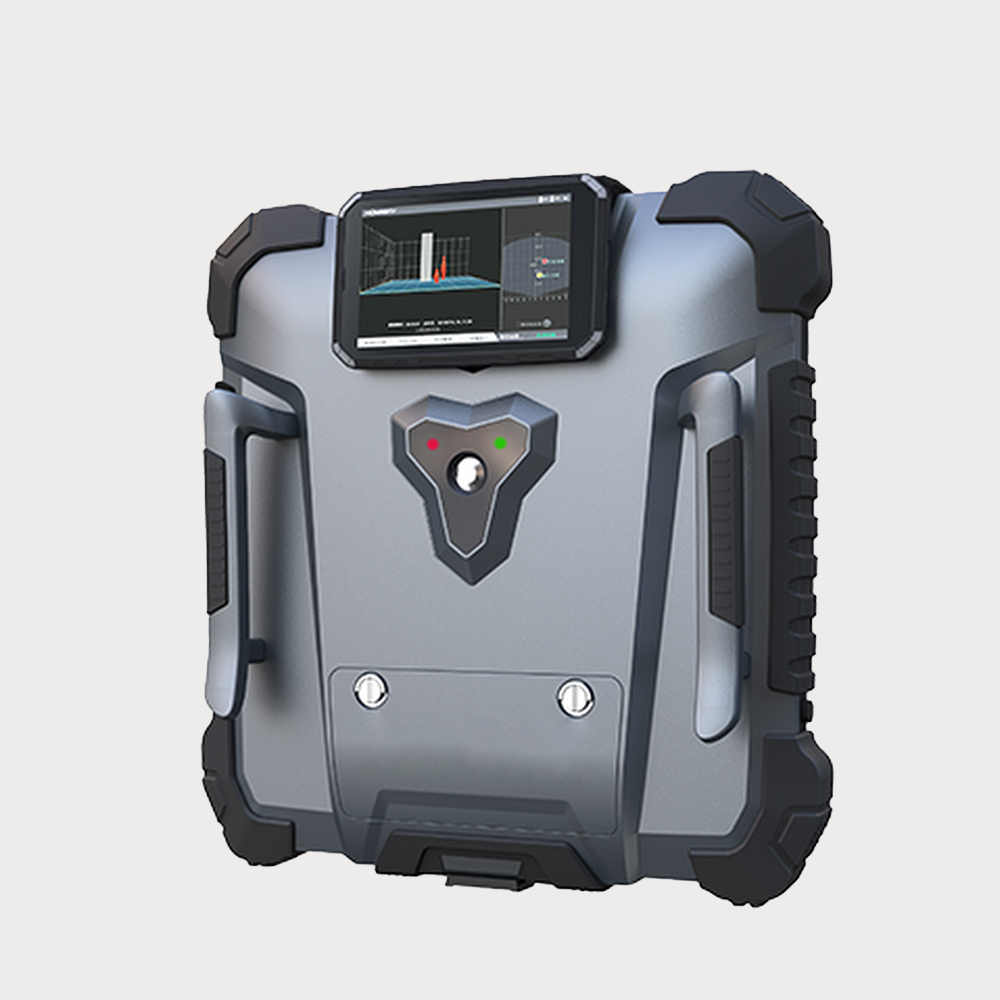

  • Three Dimensional Imaging Through Wall Radar 43 is a 3D imaging penetrating reconnaissance equipment, which can penetrate non-metallic obstacles such as building walls to detect multiple personnel targets behind it, and quickly obtain information such as 3D imaging, 2D coordinates, attitude, quantity of targets and indoor structure.
  • $ 55700
  • 0 in Stock NowJR-HN43

  • GROUP

    43

  • QUANTITY

  • Contact Online

Strong Penetration

Reliable penetration detection of common non-metallic building wall materials

Indoor Structure Simulation Reconstruction

It can simultaneously detect and display strong reflector obstacles such as walls and large-area metal products behind the obstacles

Multi-target Real-time Positioning

It has real-time detection and 3D imaging and positioning capabilities of moving and static multi-targets, and obtains target information

Intelligent Recognition

Intelligently identify the moving and static states of the target, as well as the standing, squatting and other postures of the target

3D Imaging

Adopt MIMO architecture design, with 3D stereoscopic imaging capability

Radar SystemUltra-Wideband Radar with MIMO Architecture

Operation Method

Handheld detection or tripod support remote display and control

Detection Mode

Real-time 3D imaging and positioning, simultaneous detection of moving and static multi-targets

Detection Angle

120°
