  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability
  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability
  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability
  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability
  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability
  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability

  • All-weather, All-round Composite Passive Positioning Technology High Design MaturityHigh Strong Environmental Learning Ability

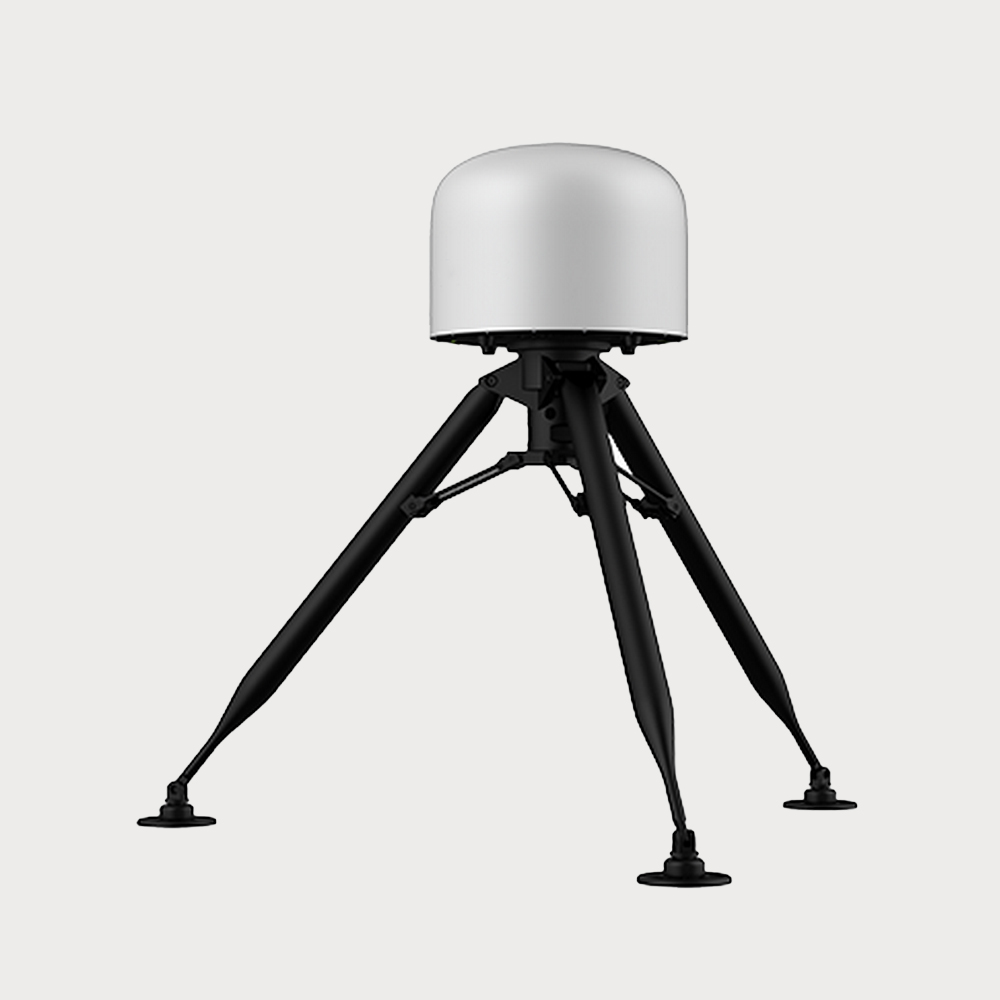

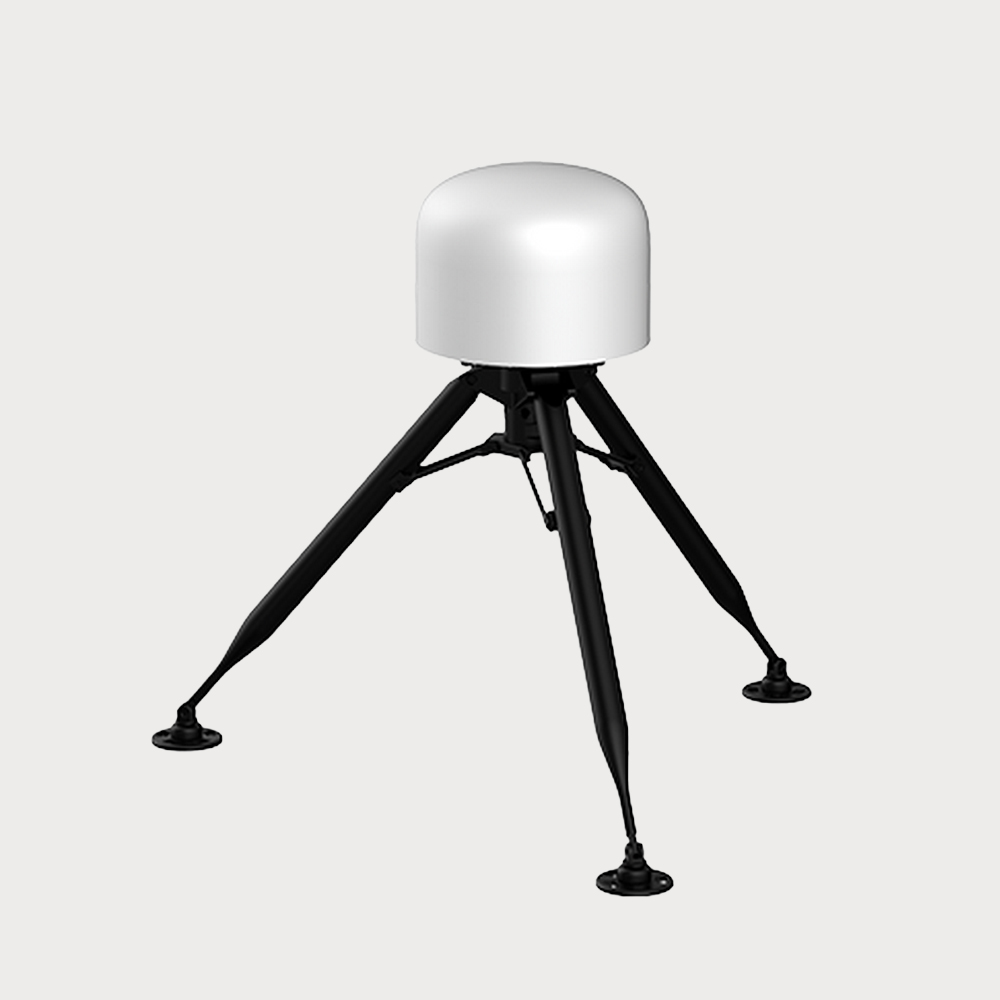

  • The full-frequency detection equipment is mainly composed of an array antenna, a radio frequency circuit, a multi-channel synchronous receiver, a GNSS positioning module, etc. The equipment is based on AOA+TDOA composite positioning technology, and has functions such as detection and early warning, model identification, positioning tracking and trajectory playback of drone within and outside the range of multiple stations. Any number of detection devices can be freely expanded according to the scope of the monitoring area.
  • $ 3340
  • 0 in Stock NowJR-HN30

  • GROUP

    30

  • QUANTITY

  • Contact Online

All-weather, All-round

It is suitable for complex electromagnetic and climatic environments, and is not affected by lightning, fog and haze weather, and night vision

Composite Passive Positioning Technology

It can be used for single-station AOA direction finding and ranging, or multi-point deployment and networking to achieve precise TDOA positioning

High Design Maturity

All-in-one design, no other functional modules, easy and fast deployment

Strong Environmental Learning Ability

It can quickly build a library for the non-signal feature library drone on site, update and expand the existing feature library

Full-band Detection

It can accurately identify the vast majority of consumer drones, WIFI toy machines and other hundreds of models

Detection Signal Type

Drone digital signal, Drone remote control signal, wifi system Drone signal

Detection Frequency Band

Drone image transmission/Data transmission/Remote control frequency band

Single Station Detection Radius

≥5km（Open environment, Droen transmit power 0.1W）

Detection Range

Horizontal 360° omnidirectional

Communication Interface

Ethernet

Power Supply

AC220V±10%，50Hz

You May Be Intersted
Hacking into the "Black Fly" UAV navigation system, so as to achieve interception control of UAVs that require flight control using the navigation system, so that they cannot fly into protected areas

Deceptive interference is carried out on the satellite navigation coordinate information received by the UAV using satellite navigation and positioning, and the no-fly zone projection or area denial function is realized.

By radiating low-power regenerative navigation satellite signals (power no more than 10dBm), the "black fly" UAV navigation system is invaded, so as to achieve the interception and control of the UAV that needs to use the navigation system for flight control, so that it cannot fly into the protected area and ensure the low-altitude safety of the area. The equipment is designed with portable pull-rod box, which can be flexibly deployed in key areas of the field.

Inquiry
4 low-band antenna interfaces are reserved, and multiple sets of programmable TTL bidirectional interfaces (GPIOs) are provided, which can be used as operation buttons and various control outputs

2dBi dual-frequency omnidirectional antenna, detection radius up to 2km, wide voltage low power consumption.

Both omnidirectional detection antenna and directional direction finding antenna have independent input ports, which can automatically switch between omnidirectional and directional antennas under different states. Four low-band antenna ports are reserved to provide one high-current drive output, which can drive alarm devices such as sound and optical vibration when needed.

Inquiry
The device is based on spectrum sensing and radio suppression technology, with UAV detection and countermeasure capabilities, capable of detecting, identifying and coordinating the fight against "rogue" UAVs

Integrated industrial design, simple and covert appearance, suitable for vehicle-mounted installation and use. Long detection and countermeasure range, up to 1-3 kilometers in urban environments.

Drone detection and countermeasure integrated vehicle-mounted device. The device is based on spectrum sensing and radio suppression technologies, possessing both drone detection and countermeasure capabilities, capable of detecting, identifying, and coordinated countermeasures against "rogue" drones. Integrated industrial design with a simple and covert appearance. Flexible deployment, long detection and countermeasure distances, reaching 1-3 kilometers in urban environments.

Inquiry
Adaptable Low Cost High Refresh Rate Strong Recognition Ability

The RF scan 3D security radar adopts 3D scanning technology, aiming at the three-coordinate three-dimensional space surveillance of low-altitude, ground targets, all-round and high-elevation coverage

The RF scan 3D security radar adopts 3D scanning technology, aiming at the three-coordinate three-dimensional space surveillance of low-altitude, ground targets, all-round and high-elevation coverage, and is mainly responsible for the real-time reconnaissance of aircraft, ground personnel, vehicles and other targets in the surrounding area, finds and tracks the target, and output or report the target information to the specified user. The radar supports three erection modes: fixed, vehicle-mounted and portable, and is flexibly suitable for various low-altitude and ground security application scenarios.

Inquiry
Adjustable power, all-in-one design, full-range radio interference Radio jamming and navigation decoy all-in-one device

Radio jamming and navigation decoy all-in-one device JR-HN1187

Integrating full-range jamming equipment and decoy equipment with a new low, small and slow defense equipment, full-band jamming equipment can be software-defined interference sources, which can be customized according to the mainstream UAV frequency band, and support independent or combined output of multiple jamming channels. Full-range jamming equipment interferes with UAV satellite navigation signals or blocks the communication link between UAV and remote control by emitting electromagnetic waves. A decoy device is a radio system based on pseudo-satellite technology, which sends a strong satellite signal with false location information to a drone, and by competing with the satellite signal in orbit, the drone's position system is deceived and driven away or forced to land.

Inquiry
Full-band software-defined design Efficient operation Highly integrated Green and safe UAV full-band jamming equipment JR-TSL1189

The products are widely used in important places such as prisons, airports, military bases, power plants and various substations UAV full-band jamming equipment

The JR-TSL1189 series of UAV full-band jamming equipment adopts open smart jamming technology, which can suppress the receiving channels of UAV navigation signals, remote control signals and image transmission signals, so that the UAV cannot be located and lose control, so as to achieve the purpose of denying the invasion of UAVs.

Inquiry
Cut off the connection between the drone and the remote pilot at a distance, forcing the drone to land, hover, or return.

The device has a shield-like design for rapid deployment

The portable drone countermeasure device is a shield-type design, which is easier to carry, convenient for rapid deployment, can be operated by a single person, and the device has a built-in large-capacity battery, which can last for 45 minutes. The single channel has high power and has a range of more than 2.5 km. It can effectively control the low-altitude multi-rotor UAV on the market, once the equipment starts to strike, the remote control of the UAV can fail, the captured images and videos cannot be transmitted, the GNSS navigation system loses signal, and the connection between the UAV and the remote control is completely cut off, so as to effectively prevent the UAV from entering the defense area and ensure the safety of low-altitude airspace.

Inquiry
It can realize automatic detection and identification, positioning and tracking, and interference disposal of intrusion drones

Multi-functional portable watch and play integrated system, full frequency detection + interference + flying hand positioning.

This system is based on the research and development of central control + message level protocol analysis technology, equipped with a UAV integrated control platform, which can carry out real-time monitoring and early warning of the UAV within the detection range, and accurately display the fuselage serial number, model, position, speed, altitude, track, remote control location and other information of the target UAV, so as to carry out countermeasures against the UAV and prevent the intrusion of the UAV.

Inquiry
